We have stock of this obsolete part
The SL486 IR Pre amplifier is available in two version's,
SMD (Surface Mount) & DIP
Click here for Purchase details and prices of the SMD
version
Click here for Purchase details and prices of the DIP
version
See below for SL486PS
This IC was manufactured by Plessey (PSSR).
Marconi
GEC Plessey
MITEL
GPS
Zarlink
The DIP part has been commonly been refered to by
different part numbers
SL486
SL486DP
SL486DP16
The Surface Mount version has also been commonly been
refered to by different part numbers
SL486
SL486MP
SL486NAMP
SL486NAMP16
SL486PS
There is also the SL486PS made by TI (Texas Instruments)
This is a complelty different part.
If anyone has any information on this, its application or
datasheet then we would love to hear from you
The SL486PS is available for sale through our broker
resellers. Please email us if you have an interest in
purchasing these, or if you have some to sell.
All of the above information is believed to be true and
accurate. If you see any errors please let us know and we
would be happy to correct it
Date Codes
The majority of the SL486's manufactured were sold to TV
manufacturer's. The date codes of most parts reflect this
of the 1980's and 1990's.
We would be interested to hear of the earliest and latest
date codes for this part.
 |
|

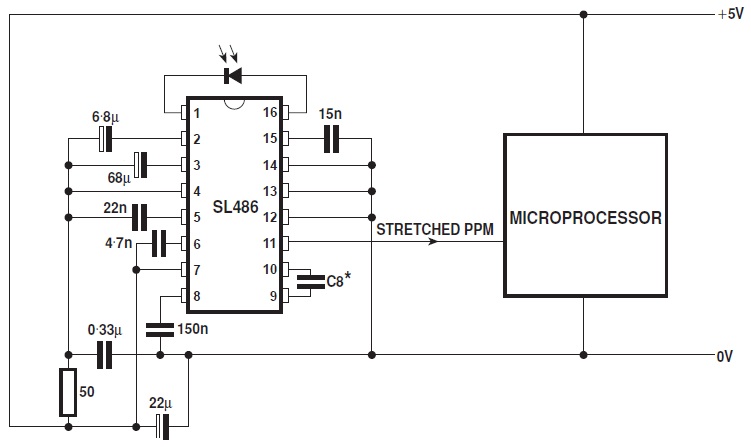

Typical IR application based on the
SL486 datasheet.
C8 set's the Pulse width of the internal pulse
stretcher. |
|
The SL486 had a unique Gyrator which helped the device
perform well even in direct sunlight.
In indoor applications a distance of 25 metres could be
achieved using a IR Handset.
Obsolete Infra Red Pre Amplifier.
We still have stock for this IR Pre Amplifier, while many
3 pin IR Modules perform well with modulted IR, this chip
takes some beating when using IR that is not modulated
onto a carrier.
Manufactured by PLESSEY, PSSR MITEL GPS
FEATURES
Base Band IR Reciever with AGC
In stock Same / Next Day Delivery
Date Code 95+ & 87+ Delivery typicaly 2 to 7
days
ROSH: No
